HOME >> PRODUCT >> Glass Capillary Tube

Application: High purity Capillary Quartz Tubes (or Quartz/Glass Capillary Tubes) with  its optical, physical, mechanical, electrical, and other outstanding  features, are widely used in optical fiber and communication industry  such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic  Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems  and other optical fiber transmission facilities. Quartz Capillary Tubing  is the essential component and required material of the Gas  Chromatographs, High Performance Capillary Electrophoresis Chromatograph  (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics  instruments in Electronic, Medical Treatment, and Optical industry.

Surface: Transparent

Characteristic: High Precision and purity

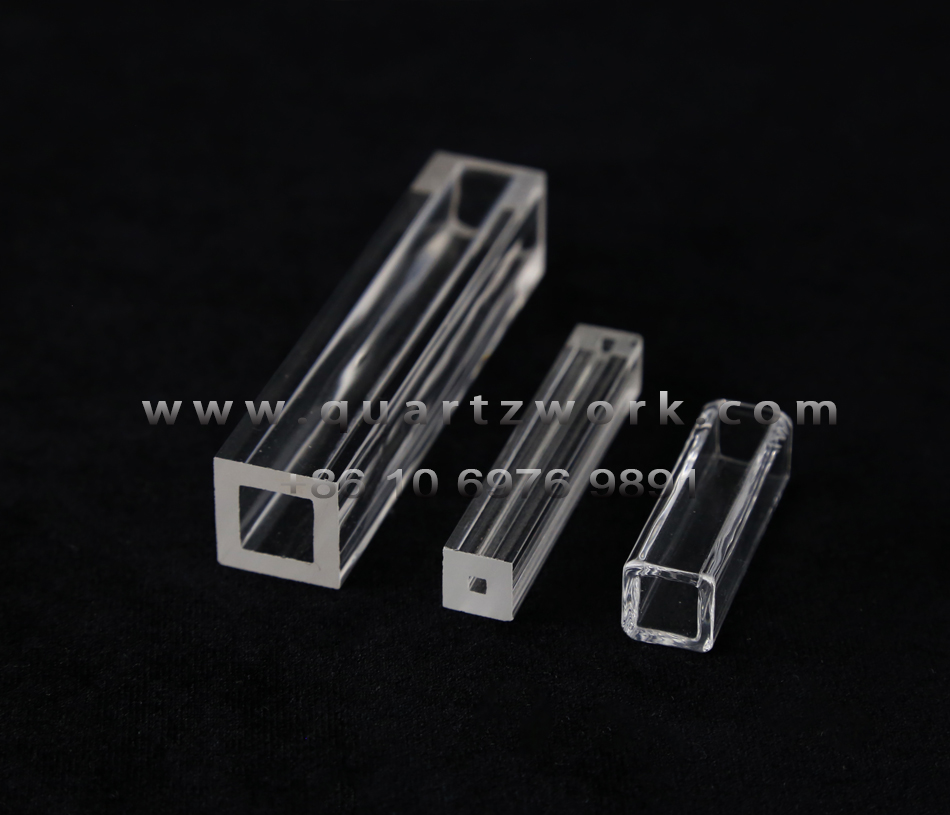

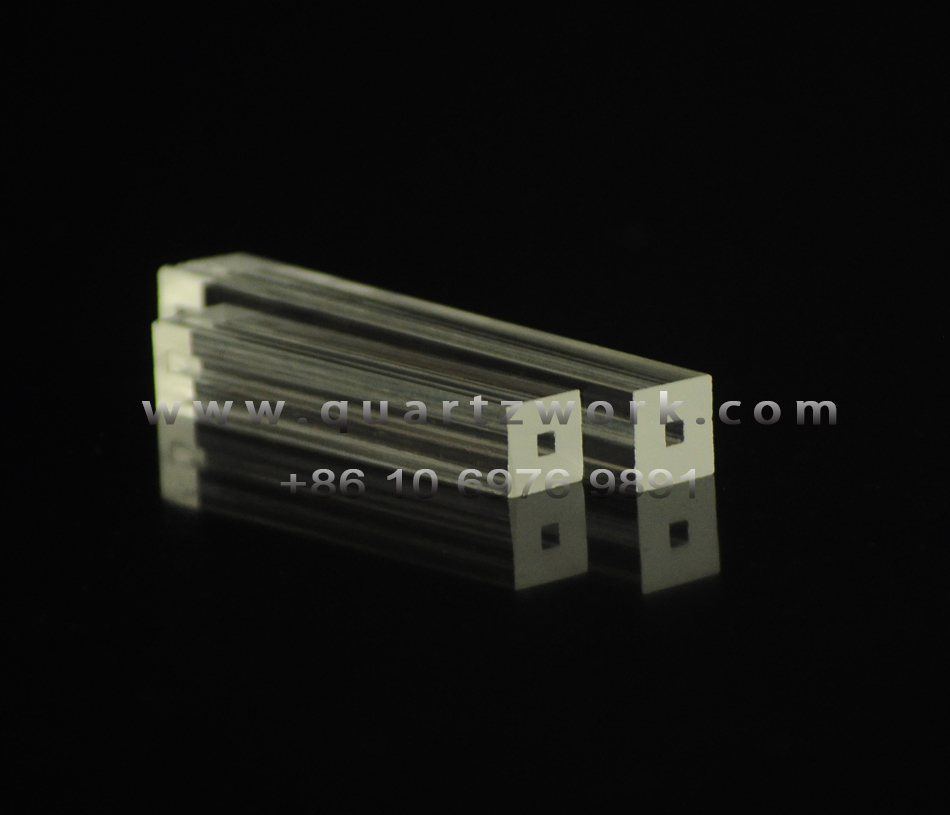

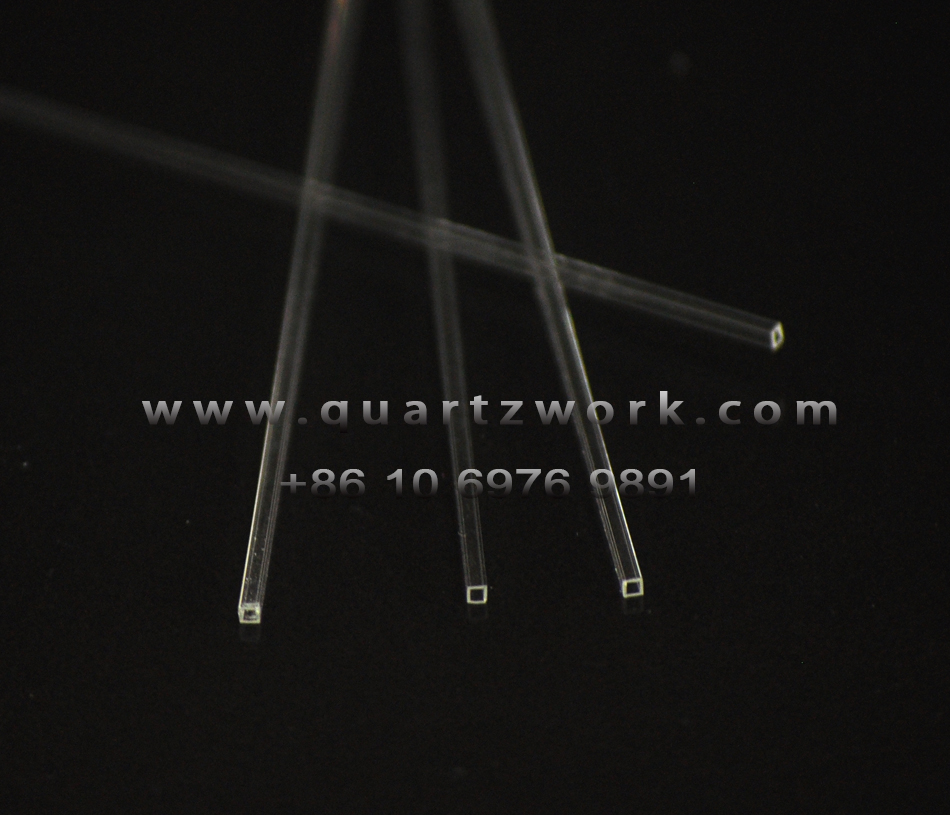

Square capillary

Parameter

Diameter

Tolerance

Unit

Length

1~2000

±0.2

mm

Width

0.3x0.3~7x7

±0.03

ID

0.1x0.1~6x6

±0.03

Material

Quartz glass, borosilicate glass, and other materials

Specification

Other dimensions and tolerances can be manufactured according to   customer requirements
