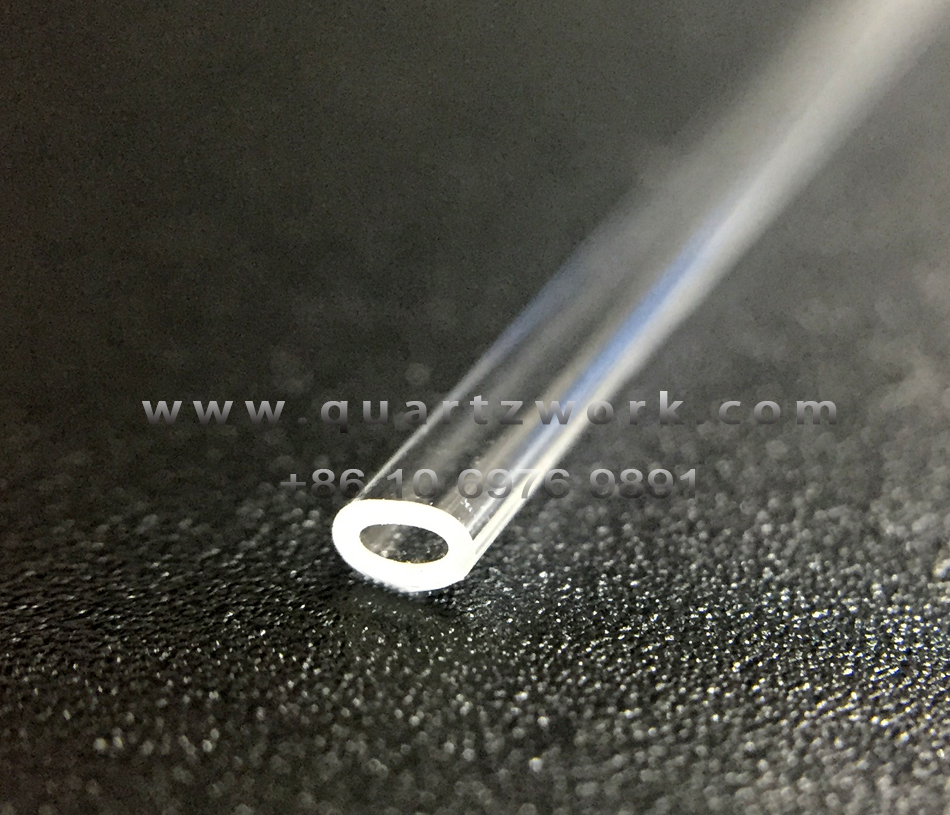

Quartz elliptical capillary tube
Other description: Elliptical Shape quartz Glass Capillary Tubes, Elliptical Shape Micro Capillary
Available material: Quartz glass, Borosilicate glass (Pyrex glass), and other custom material
Dimension: Custom
Quartz elliptical capillary tube
Shape: Custom
l Standard open end capillary quartz tube
l Cone shape quartz tube
l Cone end shape quartz tube
l Outer-hexagon shape quartz capillaries
l Oval shape quartz tube
l Outer-square type quartz capillaries
l Dual-hole shape quartz tube
l Inner multi-hole capillary quartz tube (from single-hole to multi-hole)
l Outer-circle inner-square hole type quartz capillaries
Application: High purity Capillary Quartz Tubes (or Quartz/Glass Capillary Tubes) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.
Surface: Transparent
Characteristic: High precision and purity
Shaped Capillary Tube / Rod | |
Shape | Conical tube, D-shaped tube, Elliptical tube, Trapezoidal tube, Hexagonal tube, Triangular tube, V-shaped rod, U-shaped rod, |
Aperture | Multi-hole (double holes, four holes, six holes, seven holes, eight holes, double row three holes), elliptical, rectangle, square, triangle, eccentric, D-shaped |
Material | Quartz glass, borosilicate glass, and other materials |
Remark | Minimum tolerance ±0.05mm, other shapes and sizes can be produced according to customer’s requirements |
