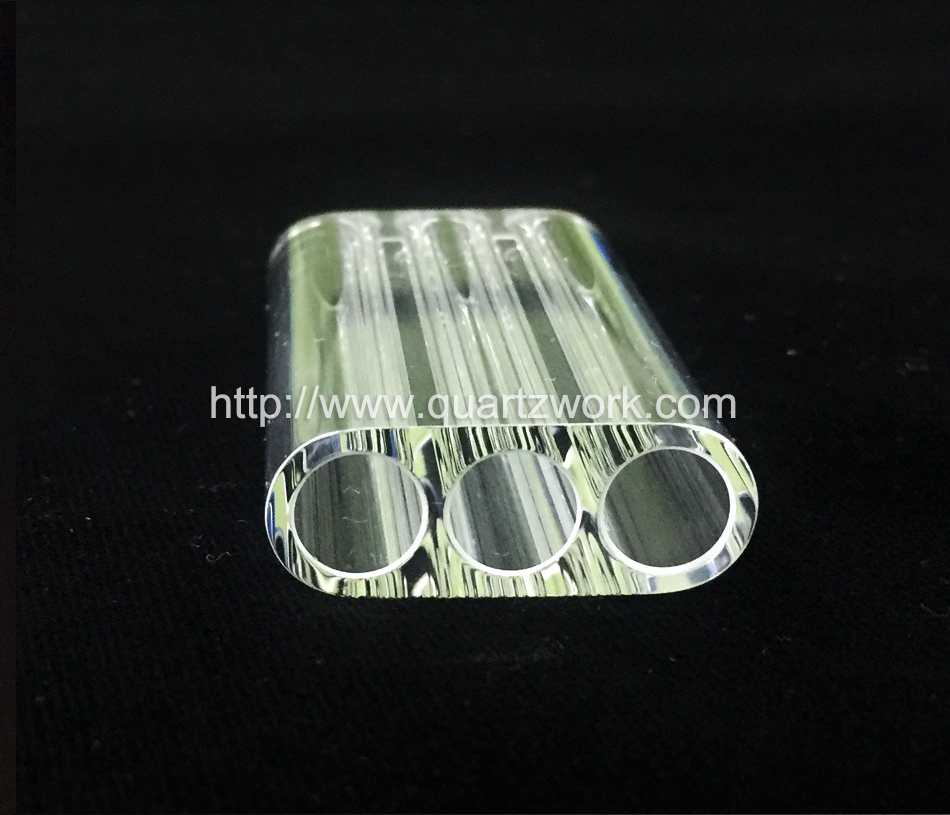

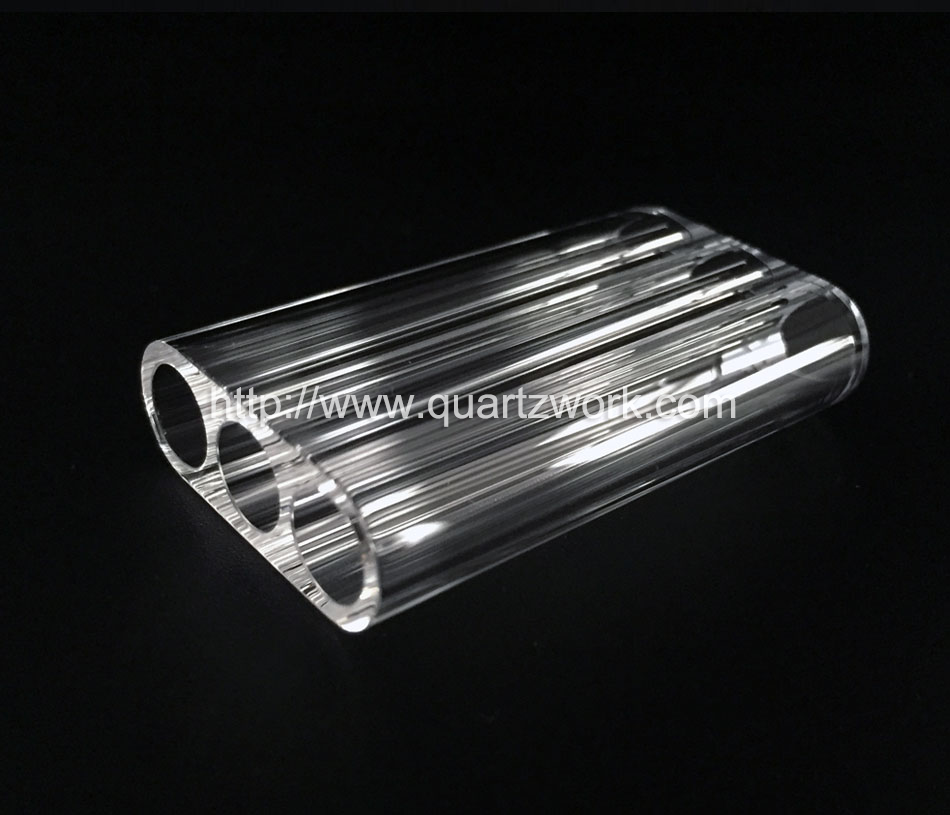

Three holes laser cavity filter / multi-hole laser flow tube
Other description: Borosilicate Flow Tube, Laser Flow Tube, Laser Cavity Filter, Laser Cavity Reflector
Material: Borosilicate glass (Pyrex glass)
Dimension: Custom length and bore diameter
Holes: Single / Double / Triple Bores
Available material: Borosilicate glass (Pyrex glass), Quartz glass, Cerium Doped Quartz, Europium Doped Quartz, Ti Doped Quartz, Samarium Doped Glass
Function: To block all UV Light below 300nm
Application: In medical, industrial, and research applications.
Surface: Transparent or grinded
Characteristic: Work in high power and efficiency. Premium quality and long service life.
The laser cavity filters produced by Beijing Zhong Cheng Quartz Glass are in high precision, with strict material selection, high efficiency and long service life, which are well praised by customers!
Material Properties for Borosilicate Glass
High borosilicate glass (also known as hard glass), is characterized by the use of glass to conduct electricity at high temperatures. The glass is melted by heating inside the glass and processed by advanced production processes. The coefficient of thermal expansion is (3.3 ± 0.1). × 10-6 / K, also known as "borosilicate glass 3.3". It is a special glass material with low expansion rate, high temperature resistance, high strength, high hardness, high light transmittance and high chemical stability. Due to its excellent performance, it is widely used in solar energy, chemical industry, pharmaceutical packaging, electric light source. , craft jewelry and other industries.
Silicon Content | >80% |
Coefficient of Thermal Expansion (20-300℃) | 3.3×10-6/K |
Density(20℃) | 2.23g/cm3 |
Hot Work Temperature(104dpas) | 1220℃ |
Annealing temperature | 560℃ |
Softening temperature | 820℃ |
Refractive Index | 1.47 |
Thermal Conductivity | 1.2Wm-1K-1 |
