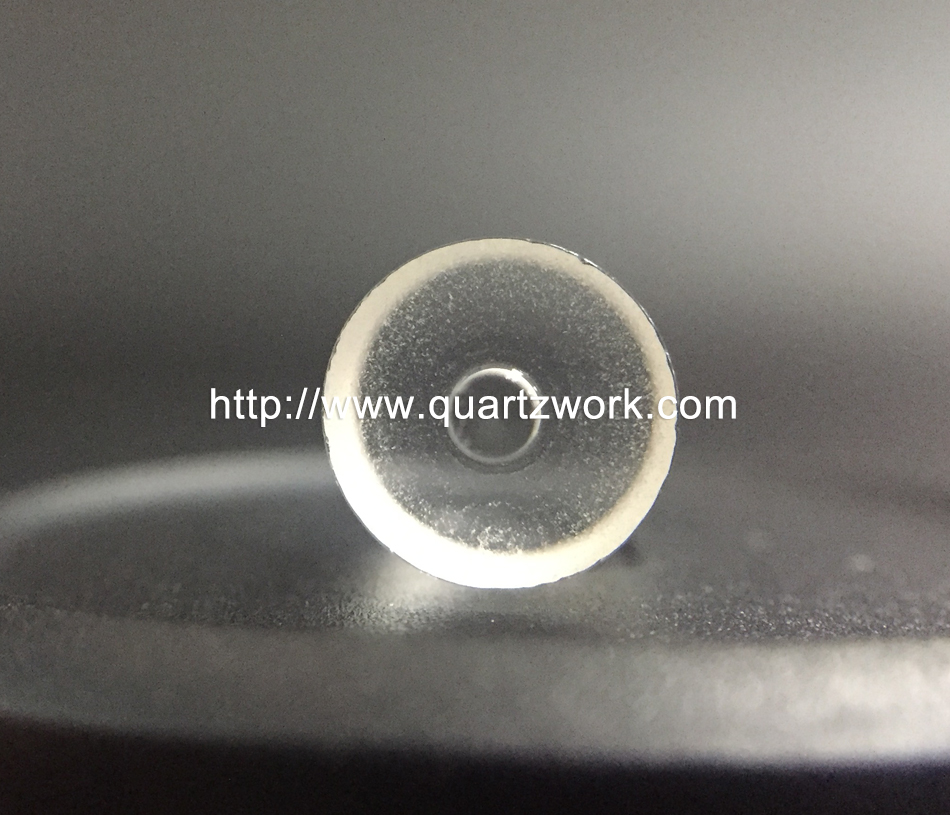

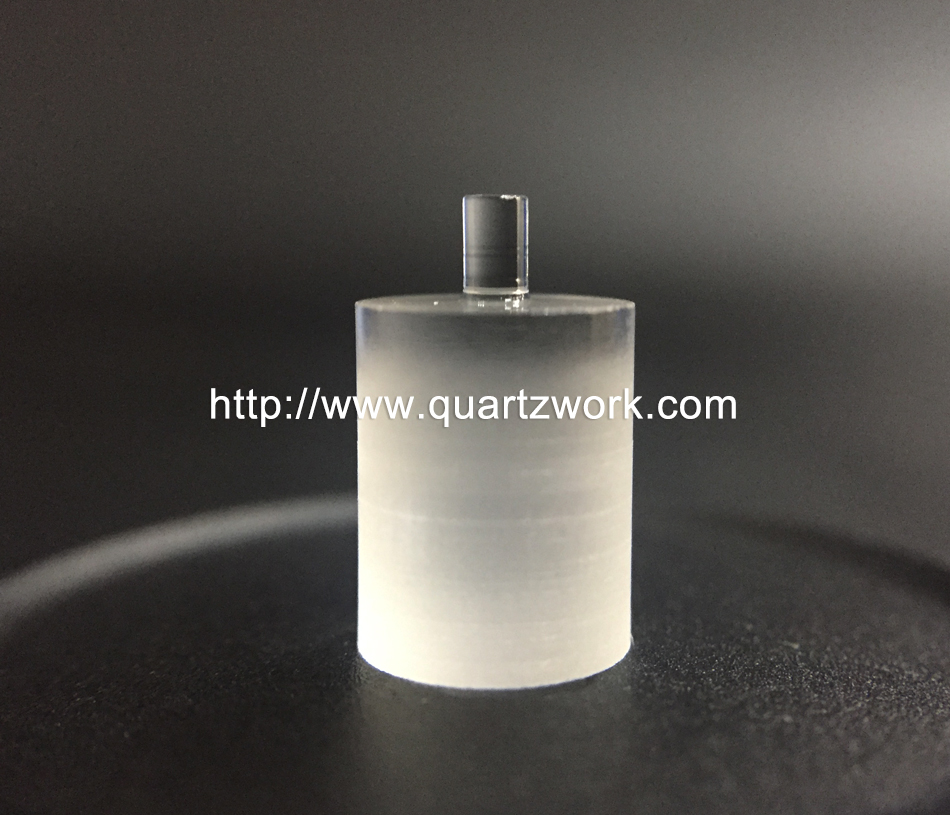

Fiber End Cap for QBH

Other description: Fiber Laser Connector
Available material: Corning 7979, Corning 7980, Heraeus 300, Heraeus 313, and other custom material
Dimension: Custom
Shape: Custom
Function: Used for high power fiber collimator, high peak power or high average power laser (amplifier) outputs for fiber amplifiers, fiber lasers, and laser processing equipment.

Application: Fiber amplifiers, fiber lasers, and laser processing equipment.

Surface: Transparent or grinded, coated or uncoated

Characteristic: Beijing Zhong Cheng Quartz Glass can do customized production according to product use requirements with material of Corning glass, Schott glass, quartz glass, or other materials specified by the customer. At the same time, the anti-reflection film treatment is performed on the output surface of the quartz block to realize the safe output of the high-power fiber laser.

Technical Specification:

Parameter	Unit	Value
Diameter of fiber core	um	10~800
Numerical aperture	NA	0.06/0.46
Size	MM	24 or 820
Angle	deg	0±0.5 or 8±0.5
Output beam	M2	≦1.5
Fiber length	M	1~15
Operating wavelength	nm	900~1100
Max. holding power	W	50~10000
Insert loss	dB	≦0.3
Return loss	dB	≧50
Operating temperature	℃	-5~+70
Storage temperature	℃	-40~+85
