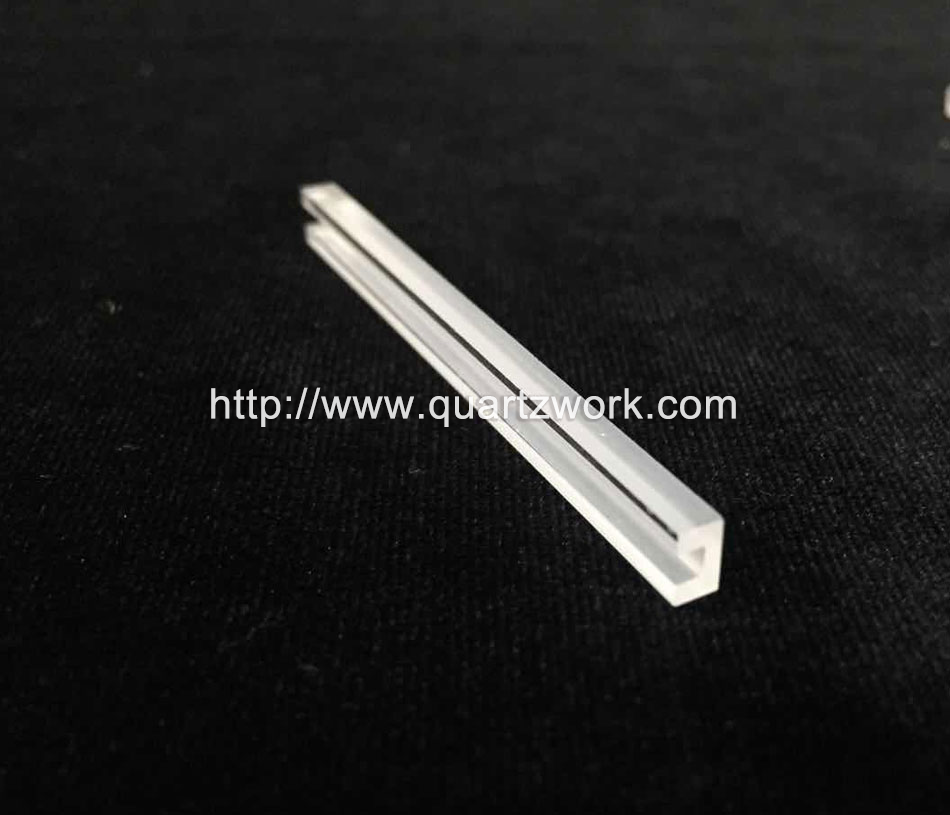

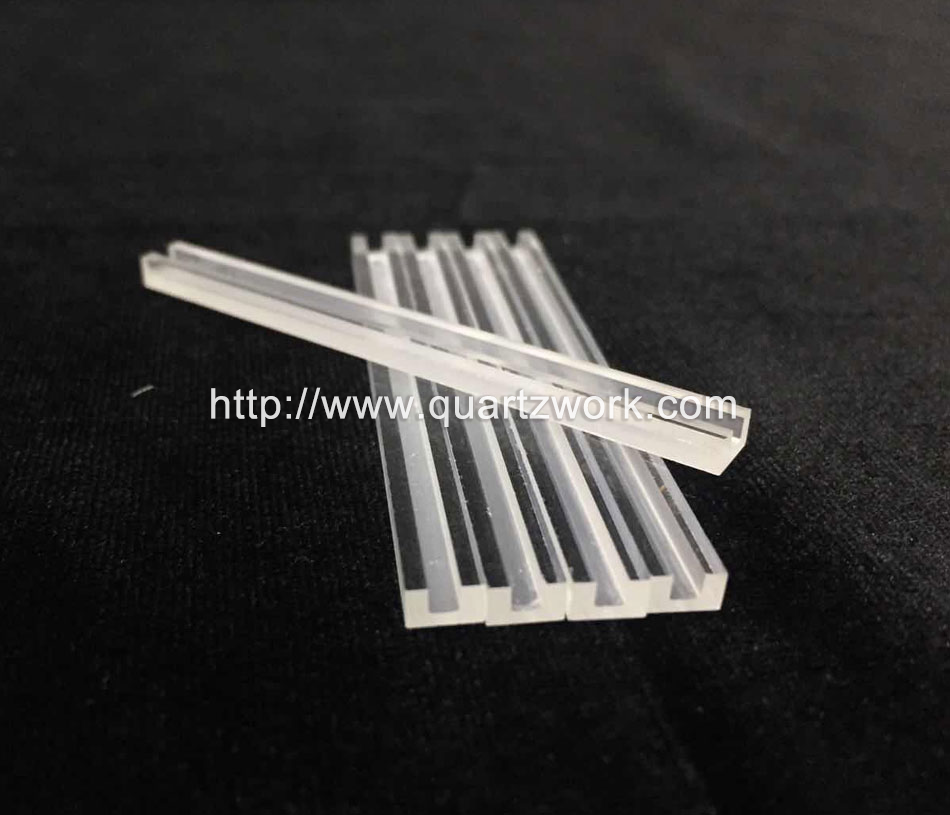

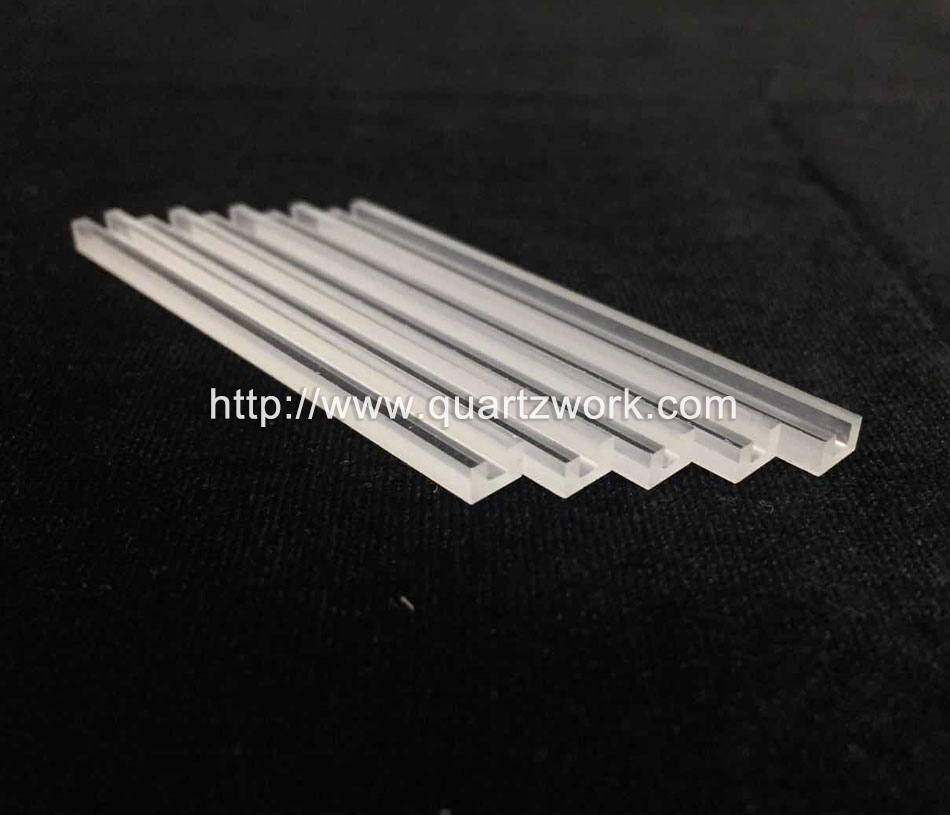

Quartz Square-channel Rod

Material: Quartz glass, Corning 7980,

Work temperature :1100 degree

Surface: Clear

Purity:99.99% Min

Advantage：

1.Very Low Coefficient of Thermal Expansion

2.Resistance to High Temperature

3.High Chemical Purity

4. High Corrosion Resistance

5.Extensive Optical Transmission from Ultra-Violet to Infra-Red

6.Excellent Electrical Insulation Qualities

Application: Quartz glass capillary rods are widely used as supporting glass capillary tubes for PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), optical fiber array substrate,fiber optic connectors in laser(wire glass tube), optoelectronics, optical communications industry. In addition,quartz capillary tubing is the essential component and required material of electronic, medical Treatment, and optical industry.

General Specifications of ZCQ Quartz Capillaries Tubing and Rods:

* Outer Diameter: 0.5mm to 6mm

* Lengths: 0.5mm to 1240mm

* OD & ID Tolerance: 0.03mm and plus

Irregular shaped tubes tolerances:0.05mm and plus

OD	Length
1.3	20 to 60mm
1.38	20 to 60mm
1.7	20 to 60mm
1.8	20 to 60mm
2.4	20 to 60mm
4	20 to 60mm
Customize
