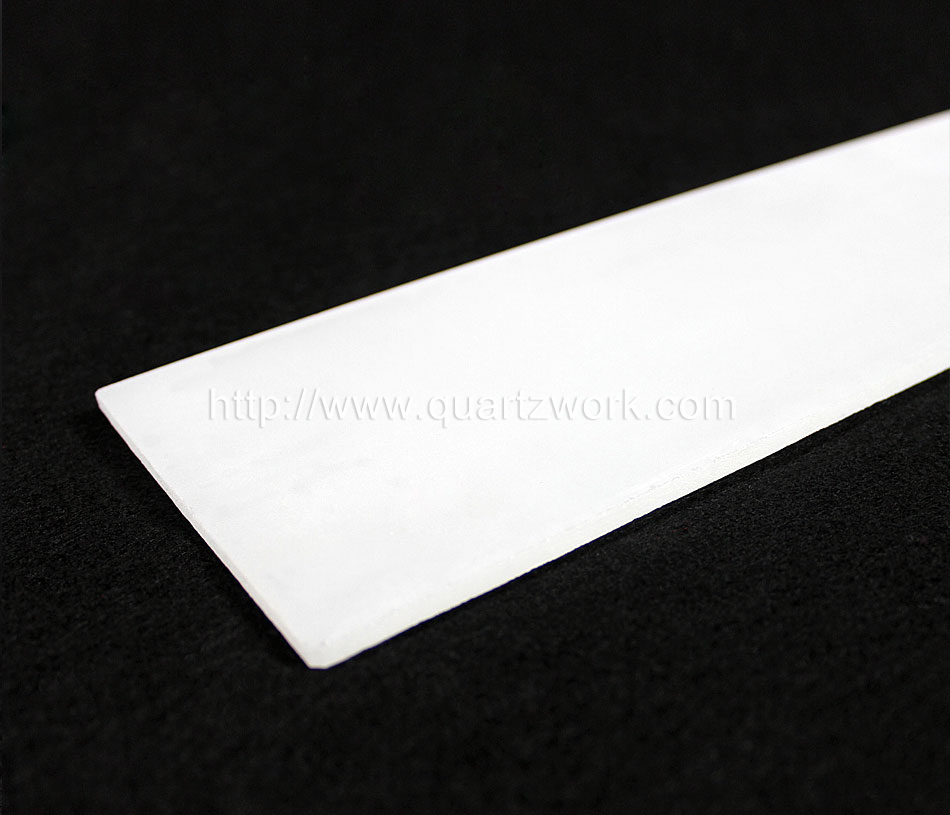

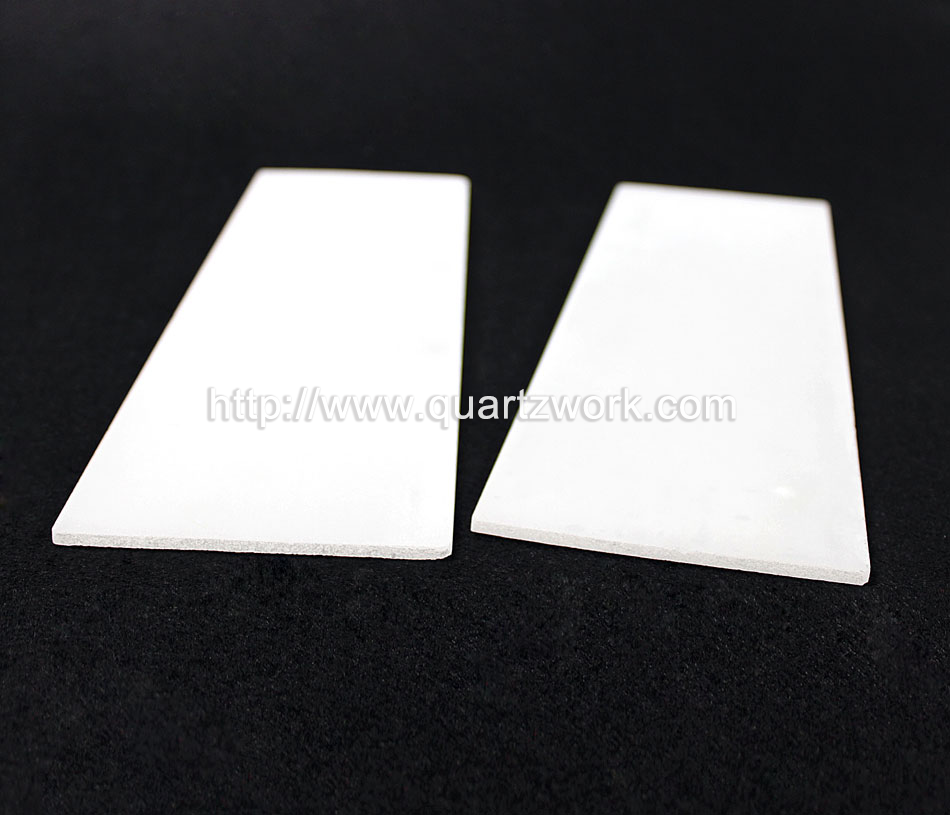

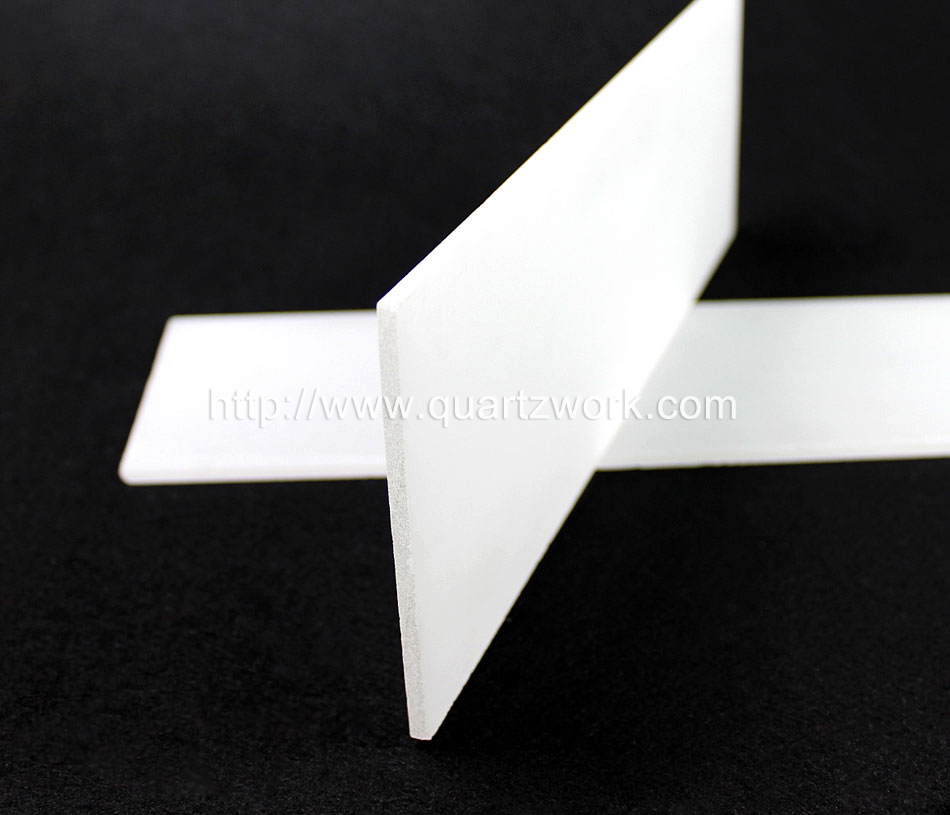

Optical glass for Fused silica material

Fused Silica is formed by chemical combination of silicon and oxygen. Fused Silica is perfect optical material due to its good UV and IR transmission, low coefficient of thermal expansion. It has high stability and resistance to thermal shock over large temperature excursions, wide temperature operating range and high laser damage threshold.

Specifacation

Application:

(1) Mechanical Components, Environmental Protection Industry,

(2) Plasma Processing Apparatus

(3)Aerospace, Commercial Industrial

(4) Military, Defense, Electronics

(5) Instrumentation, Research & Development, Nuclear

(6)Optical, Medical, Oil & Gas Lighting, Laser Equipment  Security

(7) Automotive, Audio/Video, Display Technology

(8) Furniture Design, Lighting Technology

(9) Military Technology, Office Automation, Projection Technology

(10) Vandal Proof Systems, Semiconductor, High Temperature Lighting

(11) Fiber Optics

Characteristics and superiority

1. Custom Design and Tailor-Made are welcome.

Big-dimension quartz window(L1100mm×W900mm×T12mm for instance )

Ultra-Thin windows (depend on the length and width, the thinnest thickness is down to 0.1mm)

 2. Multiple materials like Quartz, Fused Silica, Various Optical Glasses,Polyfluortetraethylene Materials or other Customer-Supplied Materials can be adopted.

3. The High-Precision Fabricated Parts deliver Superior Quality and Long Lifespan.

4. Description of Tolerance:

The Smallest Hole:OD 0.5mm Tolerances Range:+/- 0.1mm - +/- 0.05mm

Surface Quality,Flatness and Roughness: Customer Design

Beijing ZCQ Company Advantages and Conveniences
1.Supply quartz products by customer designed drawing .Also advises on drawings design and improvement to better realize product production and application.
2. Price negotiated by balance of order quantity and cooperation term.
3. Paypal payment with small banking transferring fees for small order quantity.
   50-100% T/T payment with free banking transferring fee for large order quantity

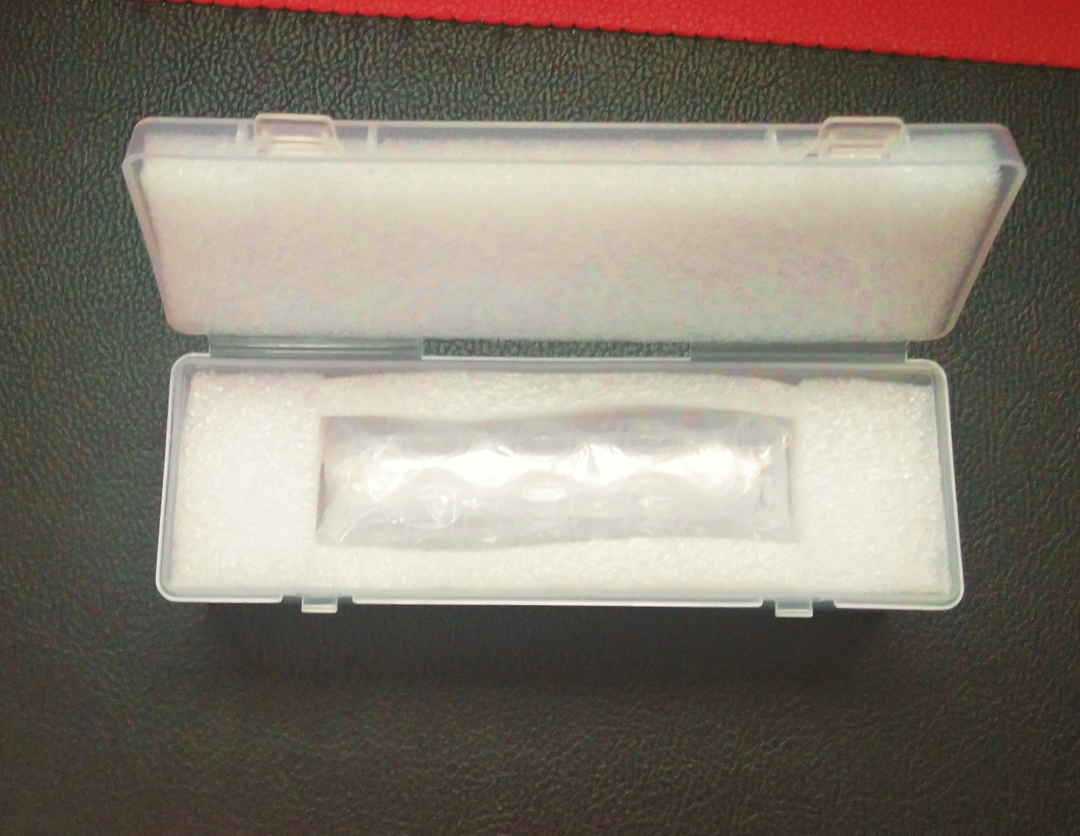

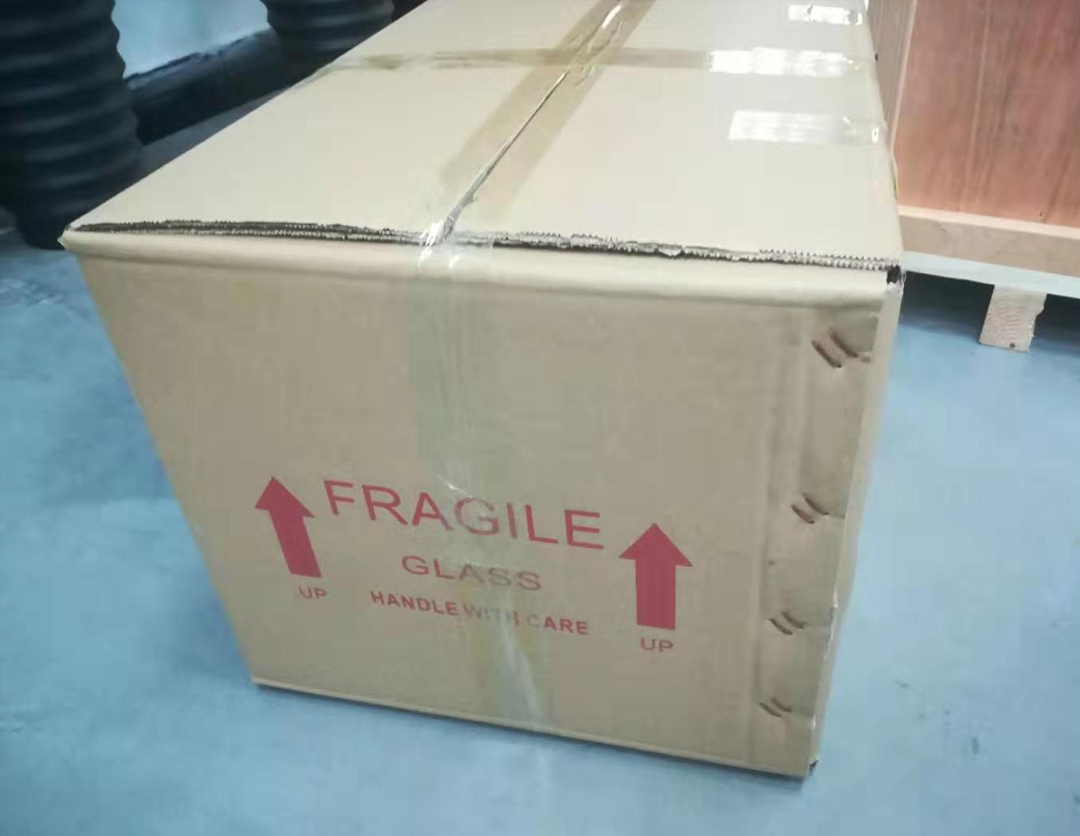

4. Safe and economical package : wooden outside, air plastic film inside,
   free carton packing
5. Free samples available, shipping charge paid by buyer
6. Products recreated or newly fabricated when broken during shipping .

Material Properties for Quartz Glass

Physical Properties

Chemical Properties

Purity
