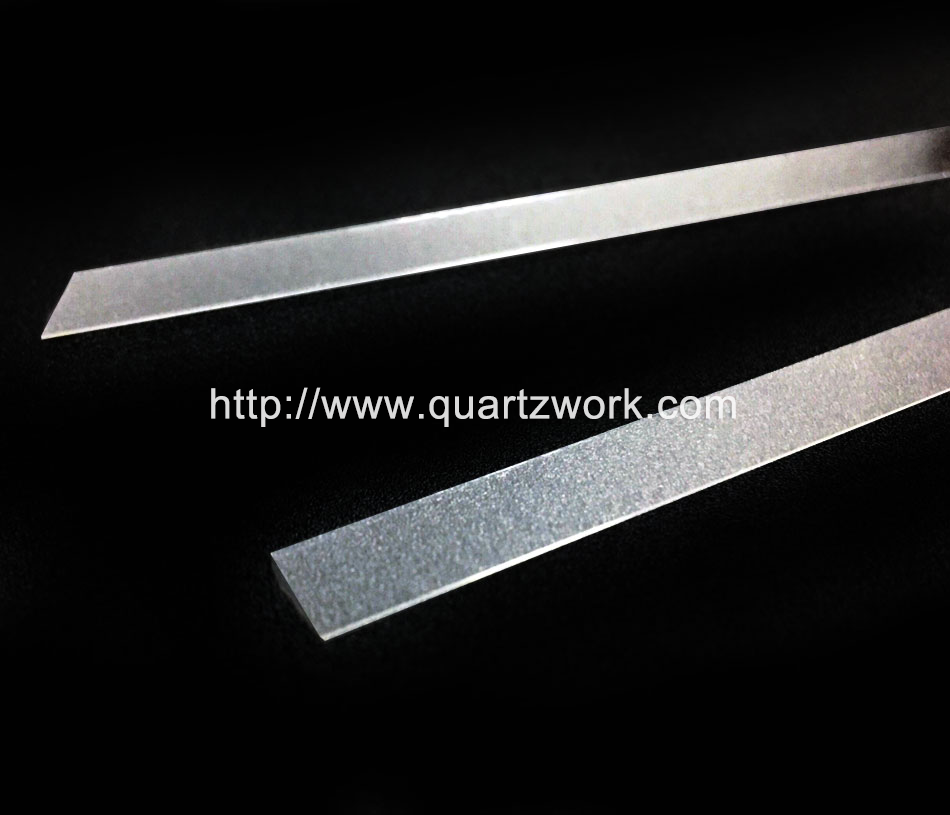

Ultra-thin Quartz Plate
Material:
1: Fused silica quartz glass (Silica Glass ,Quartz Glass )
A) Optical quartz glass
Far Ultraviolet quartz glass (JGS1)UV Grade
Ultraviolet quartz glass (JGS2) Optical grade
Infrared optical quartz glass ( JGS3)
B) Synthetic quartz glass
C) K9 Glass
D) Borosilica Glass including 80% SiO2

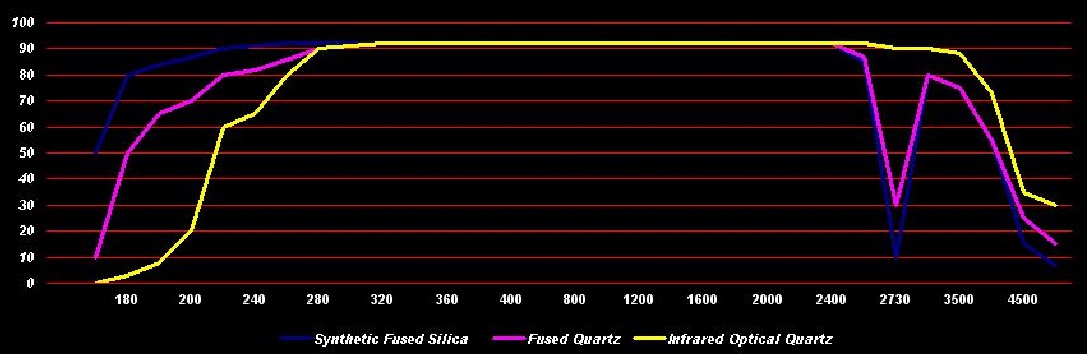

Optical glass for Fused silica material
Fused Silica is formed by chemical combination of silicon and oxygen. Fused Silica is perfect optical material due to its good UV and IR transmission, low coefficient of thermal expansion. It has high stability and resistance to thermal shock over large temperature excursions, wide temperature operating range and high laser damage threshold.
Specifacation
Parameter | Standard Grade | Precision Grade | Ultra-precision Grade |
Dimensional Tolerance | +/-0.1 | +/-0.1 | +/-0.1 |
Clear Aperture | >80% to >90% | >80% to >90% | >80% to >90% |
Surface Quality | 60-40 | 40-20 | 20-10 to 10-5 |
Parallelism | 1 arc min | 30 arc seconds | 1 arc min |
Wavefront Distortion | 1λper 25mm | λ/4 | λ/10 |
Protective Bevel | <0.25x45 deg | <0.25x45 deg | <0.25x45 deg |
Coating | Optional | Optional | Optional |
Dimension | Depends on material | ||
Thickness | Depends on material |
Application:
(1) Mechanical Components, Environmental Protection Industry,
(2) Plasma Processing Apparatus
(3)Aerospace, Commercial Industrial
(4) Military, Defense, Electronics
(5) Instrumentation, Research & Development, Nuclear
(6)Optical, Medical, Oil & Gas Lighting, Laser Equipment Security
(7) Automotive, Audio/Video, Display Technology
(8) Furniture Design, Lighting Technology
(9) Military Technology, Office Automation, Projection Technology
(10) Vandal Proof Systems, Semiconductor, High Temperature Lighting
(11) Fiber Optics
Characteristics and superiority
1. Custom Design and Tailor-Made are welcome.
Big-dimension quartz window(L1100mm×W900mm×T12mm for instance )
Ultra-Thin windows (depend on the length and width, the thinnest thickness is down to 0.1mm)
2. Multiple materials like Quartz, Fused Silica, Various Optical Glasses,Polyfluortetraethylene Materials or other Customer-Supplied Materials can be adopted.
3. The High-Precision Fabricated Parts deliver Superior Quality and Long Lifespan.
4. Description of Tolerance:
The Smallest Hole:OD 0.5mm Tolerances Range:+/- 0.1mm - +/- 0.05mm
Surface Quality,Flatness and Roughness: Customer Design
Material Properties for Quartz Glass
Physical Properties
Properties | Value | |
Mechanical Properties | Density | 2.203g/cm3 |
Compressive Strength | 1100Mpa | |
Bending Strength | 67Mpa | |
Tensile Strength | 48.3Mpa | |
Poisson's Ratio | 0.14~0.17 | |
Young’s Modulus | 72000Mpa | |
Rigidity Modulus | 31000Mpa | |
Mohs Hardness | 5.5~6.5 | |
Thermal Properties | Deformation Point | 1280℃ |
Softening Point | 1680℃ | |
Annealing Point | 1210℃ | |
Specific Heat (20~350℃) | 670J/kg.℃ | |
Thermal Conductivity (20℃) | 1.4W/m.℃ | |
Coefficient of thermal expansion | 5.5×10-7cm/cm.℃ | |
Hot Work Temperature | 1700~2000℃ | |
Short-term Use Temperature | 1300℃ | |
Long-term Use Temperature | 1100℃ | |
Electrical Properties | Resistivity | 7×107Ω.cm |
Dielectric Strength | 250~400Kv/cm | |
ε/ Dielectric Constant | 3.7~3.9 | |
Dielectric absorption coefficient | <4×104 | |
Dielectric loss coefficient | <1×104 |
Chemical Properties
Solution | Treatment condition | Corrosion capacity |
H2O | 95℃ 45(Hours) | 1~2×10-7 g/cm2 |
98%H2SO4 | 20℃ 2(Hours) | 1.4×10-8 g/cm2 |
60%HNO3 | 20℃ 2(Hours) | 5.0×10-8 g/cm2 |
36%HCl | 20℃ 2(Hours) | 15×10-8 g/cm2 |
5%NaOH | 100℃ 10(Hours) | 1.35×10-3 g/cm2 |
1%KOH | 98℃ 2(Hours) | 68×10-6 g/cm2 |
Purity
Name | Impurities ppm | ||
Synthetic (CVD)JGSI | Oxy-hyd melting JGS2 | Electrical melting JGS3 | |
Al | 0.16 | 17.00 | 14.44 |
Fe | 0.01 | 0.36 | 1.46 |
Ca | 0.31 | 1.30 | 2.45 |
Mg | 0.65 | 0.22 | 0.46 |
Ti | 0.08 | 1.3 | 4.84 |
Cu | 0.01 | 0.04 | 0.16 |
Ni | 0.01 | 0.01 | 0.04 |
Co | 0.04 | 0.01 | 0.02 |
Mn | 0.01 | 0.03 | 0.08 |
K | 0.34 | 0.63 | 2.16 |
Na | 0.06 | 1.11 | 1.33 |
Li | 0.01 | 0.63 | 0.81 |
B | / | 0.08 | 0.05 |
OH | 1100~1300 | 150~250 | 1~120 |
SiO2 | >99.999% | 99.99% | 99.92% |
