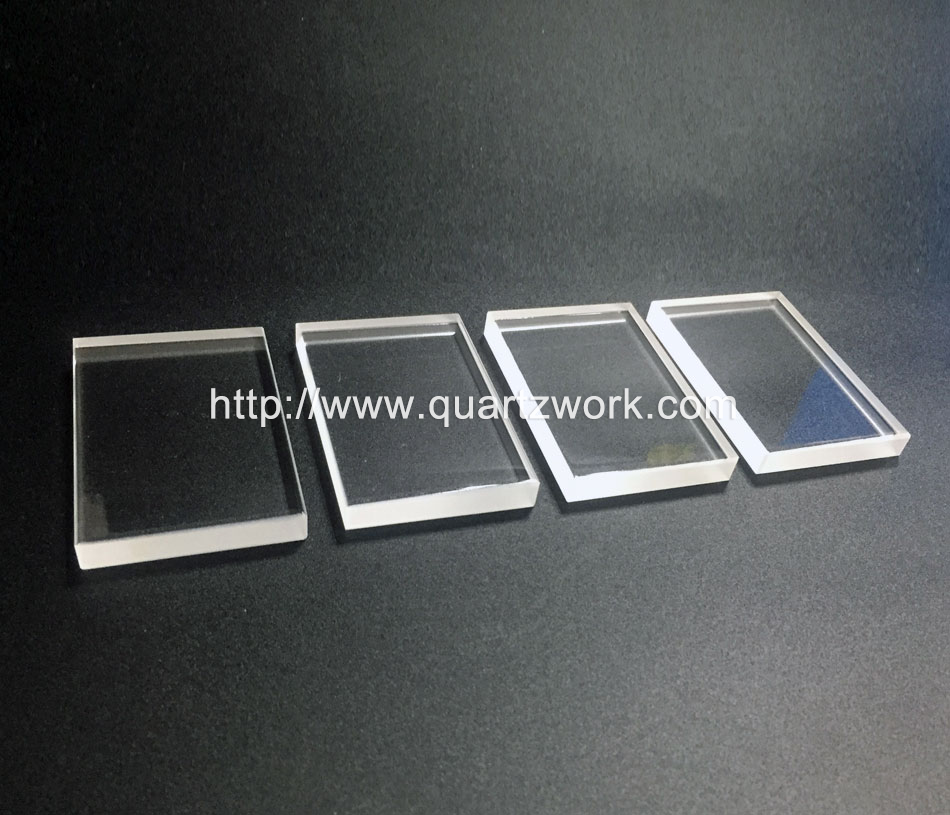

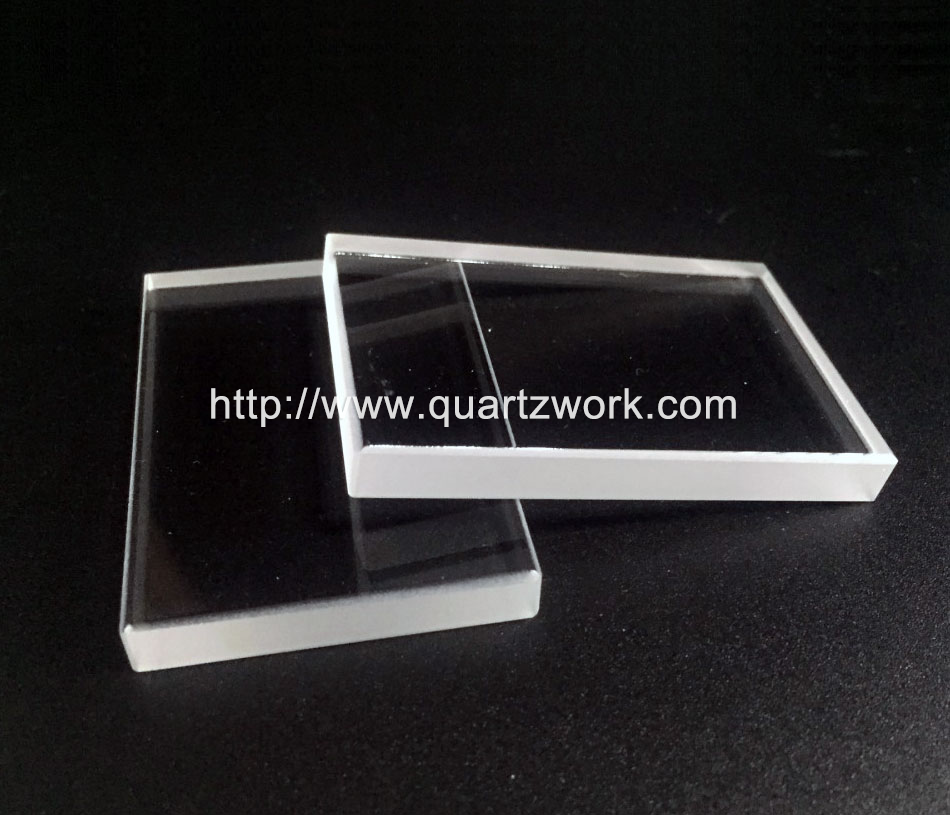

HOME >> PRODUCT >> Quartz Glass Plate & Discs

Specification


Materialfused silica or JGS1,JGS2,JGS3
Diameter tolerance+/-0.1 mm
Thickness tolerance+/-0.1 mm
Clear Aperture>90%
Parallelism3 arc minutes
Surface Quality40/20 scratch and dig
Surface irregularityλ/4 (at) 632.6nm
Protective Bevel0.25x45°


Features:low
cost, low thermal coefficient of expansion, better thermal stability,
superior properties of transmission, mechanics and optics.

Applications:Electrics,
precision optics, laser equipments,optics communication,
emitter/detector protection devices (such as in spectrophotometers), and
imaging systems etc.

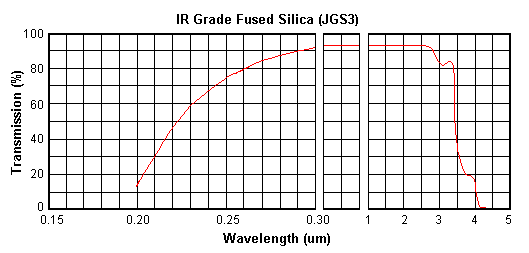

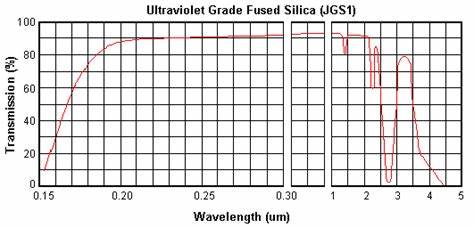

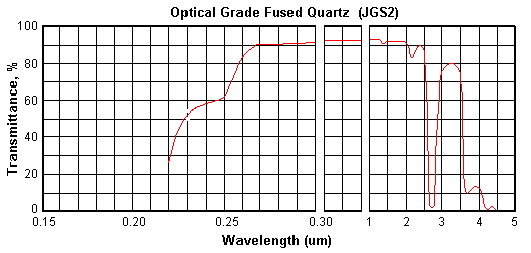

Transmission Curve for JGS1,JGS2 and JGS3


Ultraviolet
Grade Fused Silica: JGS1 (China), equivalent to Suprasil 1 and 2
(Heraeus), Spectrosil A and B (Saint-Gobain) and Corning 7940 (Corning),
Dynasil 1100 and 4100 (Dynasil).

Optical
Grade Fused Quartz: JGS2 (China), equivalent to Homosil 1, 2 & 3
(Heraeus), Dynasil 1000 & 4000 and 5000 & 6000 (Dynasil)


IR grade Fused Silica: JGS3 (China), equivalent to Suprasil 300 (Heraeus).


Difference properties


ParameterJGS1
JGS2 JGS3
Maximum Size<φ200mm<φ300mm<φ200mm

Transmission Range

(Medium transmission ratio)

0.17~2.10um

 (Tavg>90%)

0.26~2.10um

(Tavg>85%)

0.25~3.50um

(Tavg>85%)

OH- Content
1200 ppm150 ppm5 ppm
Fluorescence (ex 254nm)
Virtually FreeStrong v-bStrong V-B
Impurity Content5 ppm20-40 ppm40-50 ppm
Birefringence Constant2-4 nm/cm4-6 nm/cm4-10 nm/cm

Applications

Laser substrate: Window,

lens, prism, mirror...

Semiconductor and high temperature window
IR substrate


Same Properties

Density2.20g/cm3

Abbe Constant

67.6
Refractive Index (nd) at 588nm

1.4586

Wavelength (um)Refractive Index (n)Wavelength (um)Refractive Index (n)
0.2001.550511.0001.45042
0.2201.528451.0641.44962
0.2501.507451.1001.44920
0.3001.487791.2001.44805
0.3201.482741.3001.44692
0.3601.475291.5001.44620
0.4001.470121.6001.44342
0.4501.465571.7001.44217
0.4881.463021.8001.44087
0.5001.462331.9001.43951
0.5501.460082.0001.43809
0.5881.458602.2001.43501
0.6001.458042.4001.43163
0.6331.457022.6001.42789
0.6501.456532.8001.42377
0.7001.455293.0001.41925
0.7501.454243.2001.41427
0.8001.453323.3701.40990
0.8501.452503.5071.40566
0.9001.451753.7071.39936



Hardness5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength4.8x107 Pa (N/mm2) (7000 psi)
Design Compressive StrengthGreater than 1.1x109 Pa (160,000 psi)
Bulk Modulus3.7x1010 Pa (5.3x106 psi)
Rigidity Modulus3.1x1010 Pa (4.5x1066 psi)
Young's Modulus7.2x1010 Pa (10.5x106 psi)
Poisson's Ratio0.17
Coefficient of Thermal Expansion5.5x10-7cm/cm.°C (20°C-320°C)
Thermal Conductivity1.4 W/m.°C
Specific Heat670 J/kg.°C
Softening Point1683°C
Annealing Point1215°C
Strain Point1120°C
Electrical Receptivity7x107 ohm.cm (350°C)
Dielectric Properties (20°C and 1 MHz)
  Constant
  Strength
  Loss Factor
  Dissipation Factor		3.75
  5x107 V/m
  Less than 4x10-4
  Less than 1x10-4
Velocity of Sound-Shear Wave3.75x103 m/s
Velocity of Sound/Compression Wave5.90x103 m/s
Sonic AttenuationLess than 11 db/m MHz
Permeability Constants (cm3mm/cm2 sec cm of Hg)
  Helium
  Hydrogen
  Deuterium
  Neon		(700°C)
  210x10-10
  21x10-10
  17x10-10
  9.5x10-10
Chemical Stability (except hydrofluoric)High resistance to water and acids
