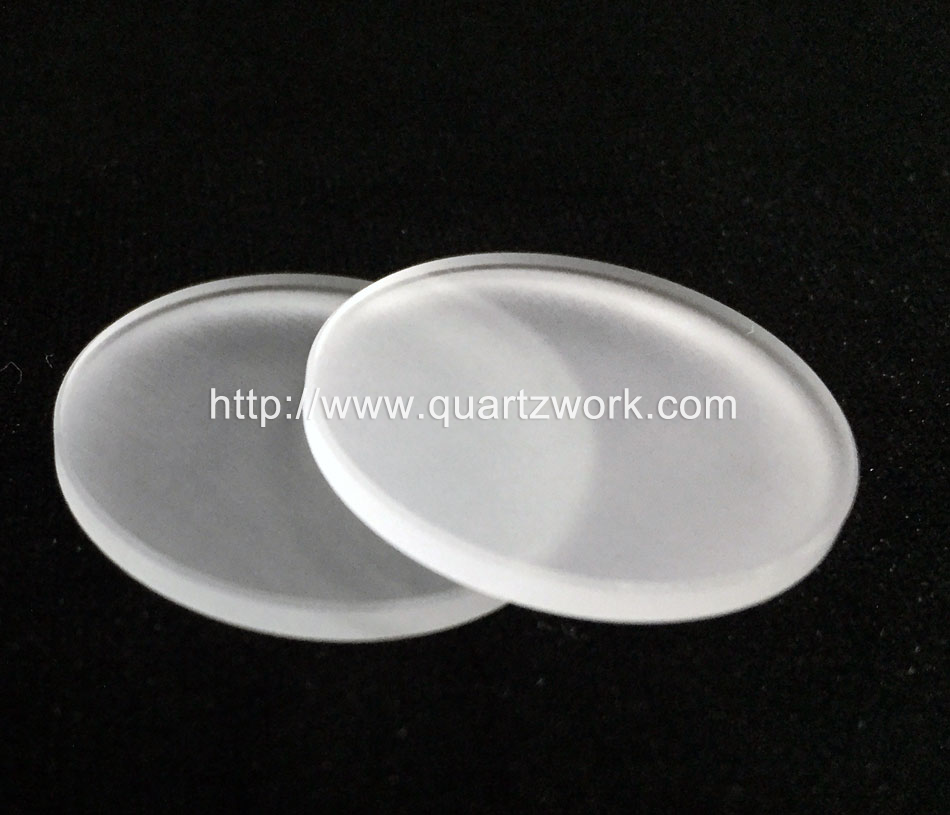

IR Grade Fused Silica Optical Glass Windows for Thermography
IR Grade Fused Silica Optical Glass Windows for Thermography
Material :JGS1 or all optical material
Size :As customer's requirement
Parallelism :30 arc second
Thickness Tolerance :±0.1mm
Dimension tolerance :+/-0.1mm
Surface Quality :20/10
Flatness :lambda/2~lambda/10
Coating :Available
OEM :Accepted
Features:low cost, low thermal coefficient of expansion, better thermal stability, superior properties of transmission, mechanics and optics.
Applications:Electrics, precision optics, laser equipments,optics communication, emitter/detector protection devices (such as in spectrophotometers), and imaging systems etc.
Fused Silica is based on UV synthetic fused silica,which shows better performance from UV to IR spectrum than BK7 material. Also, it is the best choice in terms of thermal stability. In addition to superior transmission characteristics, fused silica exhibits higher thermal properties, exceptional purity, and excellent environmental durability for applications.
Specifications | |
Material | fused silica,quartz or JGS1 |
Parallelism | 10″or 1′ |
Diameter Tolerance | +0.0/-0.1mm |
Surface Quality | 20-10 scratch and dig |
Thickness Tolerance | ±0.1mm |
Wavefront Distortion | λ/10 per 25mm |
Clear Aperture | >90% |
Bevel | <0.5mm×45° |

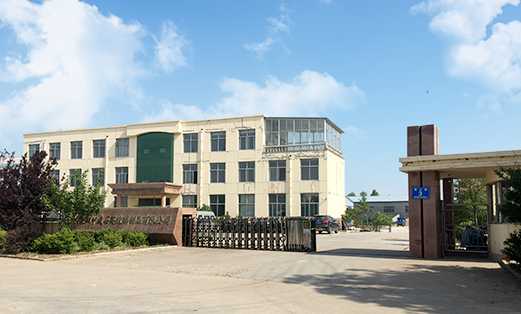

BEIJING ZHONG CHENG QUARTZ GLASS CO.,LTD(ZCQ) was founded in 1998, and we emphasis on optical fused quartz glass products and optical glass has resulted in our excellent reputation in this field . We fulfill our customers requests in our manufacturing base located in Beijing, China. As an international supplier of quartz glass, fused silica and optical glass products, we have been authenticated by GB/T 19001-2008 QMS & CE,
We mainly produce all kinds of quartz products: such as quartz glass sheet, quartz plate, ordinary quartz crucible, irregular quartz crucible, opal quartz thick wall tube, transparent quartz tube, opal quartz ring or transparent quartz ring, quartz cone, quartz guide tube, quartz insulation tube, etc.
Our products are widely used in the Semiconductor, Telecommunications, Solar Energy, Electron, Optics, Optical Fiber, Chemical Industry, Coating, Medical Treatment, Aerospace, Military Affairs and other high-tech industries.
What is our business partners ?
We provide quartz glass products for customers in America, Germany, France, Britain, Australia, Korea, Japan, and more than 50 countries.
Please do not hesitate to contact us as soon as possible. Your early reply will be highly appreciated.
ZCQ quartz work manufacturer on YouTube
https://youtu.be/mvMeK0oJg44
Quartz tube, Quartz plate, quartz rods Samples available
If you need sample to test our quartz rod quality, just contact us.
